Engine Shipping via Pallet – Send Engines and Gearboxes

Engine shipping via pallet is a cost effective method of sening engines and gearboxes across the UK

. Engines are shipped across the country every day, especially by eBay sellers and professional rebuilding companies. The most reliable and cost effective courier method of an engine is via pallet.   They are often heavy and bulky, particularly if gearboxes are attached.  This means they need to utmost care when transporting them.  There are a few rules that must be followed to ensure that your engine is transported safely.

USED ENGINE COLLECTION GUIDE DETAILS

Used engines are a particular risk in a pallet network. If the fluids are not drained, they can leak,  contaminating other freight, trailer/truck beds and create a slip hazard. If they are not securely fastened to the pallet, they detach and damage other freight, leak oil and become a contact hazard by falling from vehicles. Recent incidents, one of which could have been very serious, have lead to the introduction of these
guidelines.

To ensure the safety of employees, the following control measures should be taken.

  1. ALL fluids MUST be drained. The driver must have access to the dipstick and will check for oil. There should be no oil showing on the dipstick. If oil is present, the pallet cannot be collected.
  2. The pallet should have rags, or oil absorbent mats on top, before the engine is placed on the pallet. Any small drips should be contained, a small amount of oil goes a long way.
  3. If the engine has a sump and is therefore not flat, the sump should be in car tyre to help stabilize it.
  4. The engine should ideally be fastened to the pallet by at least a ratchet strap. Professional style plastic or steel banding with at least 2 bands should be acceptable. All straps and bands should be protected where they touch the engine to prevent chafing/sliding.
  5. Fastening to the pallet with ROPE, SHRINK WRAP ONLY, SHRINK WRAP THAT IS NOT SEE THROUGH E.G. BLACK, TAPE ONLY, STRAPS THAT ARE NOT RATCHET, OR PLASTIC /METAL BANDS THAT HAVE NOT BEEN AFFIXED BY A MACHINE OR ARE NOT TIGHT, are not acceptable methods for carriage and collection will be refused.
  6. Providing the banding/strap is in place, shrink wrap can be used, as long as there is a hole so the driver can check the dipstick. The strap/band should be visible. If the driver cannot check the oil, the collection can be refused.

The driver can refuse the collection if he has doubts regarding the security of the engine on the pallet Paragraph 223 of the Health and Safety Executive, Workplace Transport Safety Guide, states that everyone in the supply chain should co-operate to achieve safety, including the sender, so we all have a duty to ensure the consignment is secure and safe.

Good and bad examples of palletised engines for guidance.

Bad Example

Engine Tied to a Pallet

This is what can happen when engines are not shipped correctly!

Tied with rope is not a good way to secure an engine on the pallet. The rope can stretch, come loose, or a once secure knot may not be as secure once in transit. We do not recommend or accept rope tied engines.

Good Example

engine strapped to pallet

Strapped tightly to the pallet. Ideally should have rags/mats underneath, but it is drained and is a ‘clean’ engine, it is not wet with oil.

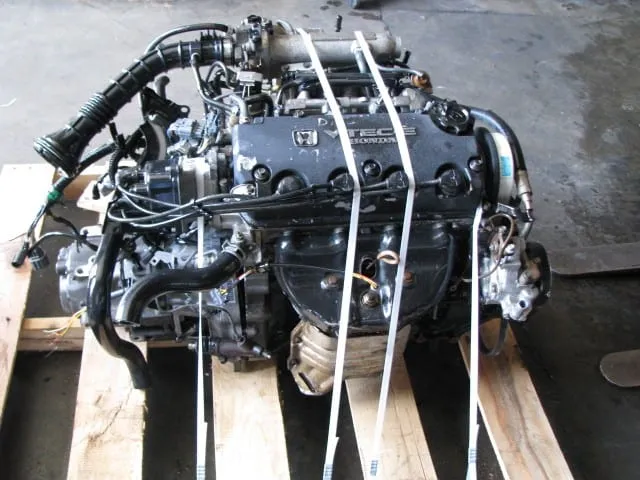

Plastic band strapped engine. 4 plastic straps done by machine and tight. Engine sits flat on pallet, no tyre needed. Ideally should be sat on rags/mat, but not needed as engine is drained, and is very clean. Straps could benefit from protection, but if bands touch smooth areas then are ok.
